HOME > PRODUCTS > Aluminum > Aluminum Rod > 5086 Aluminum Rod

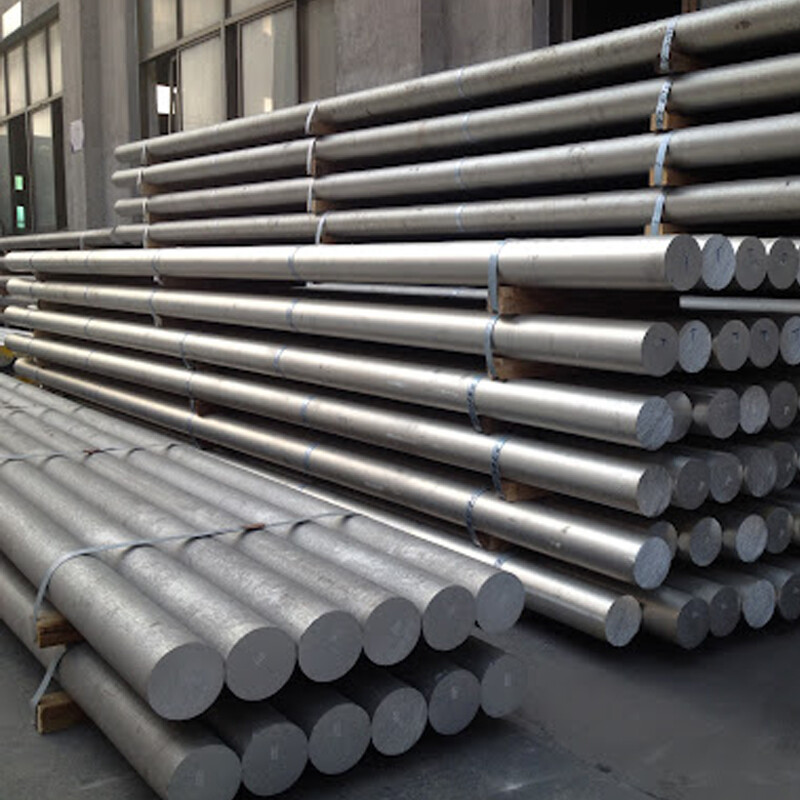

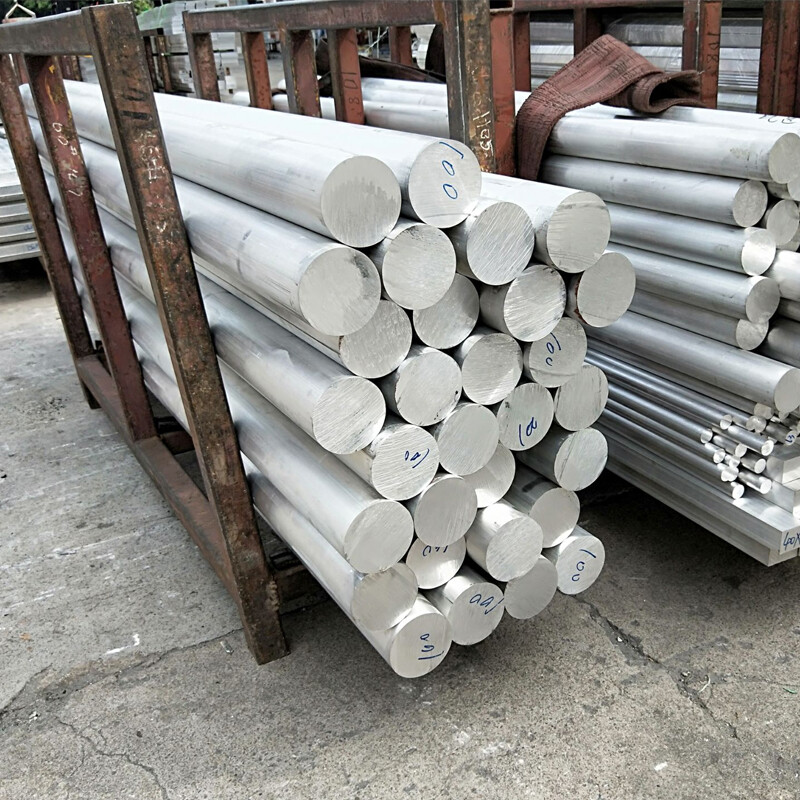

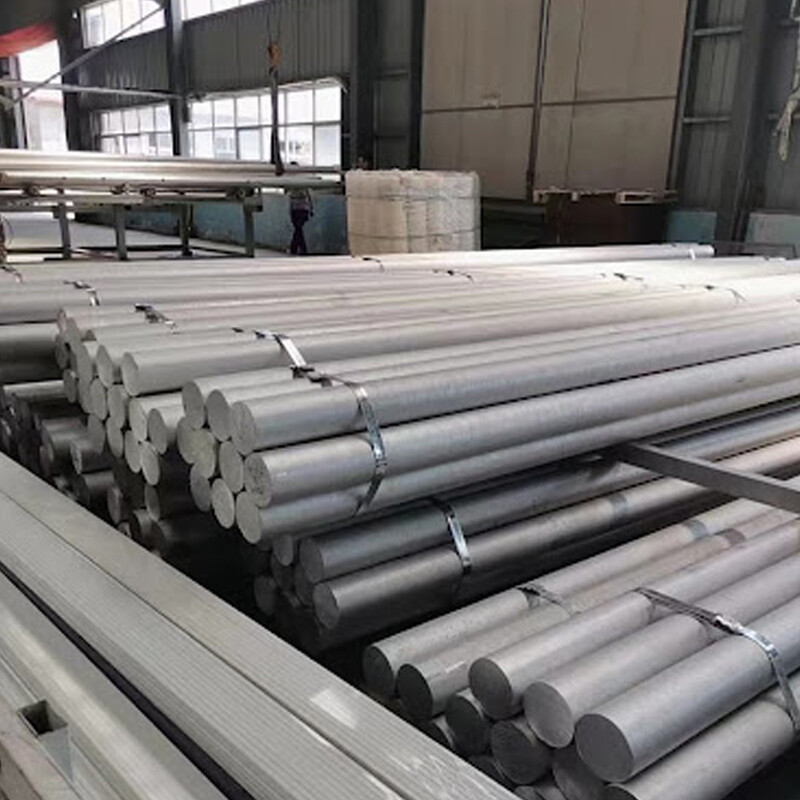

5086 Aluminum Rod

Material:1050, 1060, 1070, 1100, 2024,3003, 3004, 3005, 3104, 3105, 3A21, 5005, 5052, 5083, 5086, 5154, 5182, 5251, 5454, 5754, 5A06, 6061, 6063, 6082, 6A02, 7071 etc.
Diameter：5mm-2500mm,or as customer's request
Length：10mm-12000mm, or as customer's request
Standard：ISO,JIS,ASTM,AS EN
✦Advantage: Competitive price and quality from our own factory
✦Certification : Approved by ISO9001, CE, SGS every year
✦ We promise that all steel sold will have a 2-year warranty period and will be responsible for every batch of goods you buy!
✦ We are a professional steel manufacturer with guaranteed quality. If you want to purchase products, please contact us for a more favorable price!

+86 19353196183

steel@zgbeststeel.com

◉ Product Details

1050 Aluminum Bar Description

Aluminum 1050 alloy is composed of 99.5% pure aluminum, and tiny amounts of copper, manganese, magnesium and other elements for smelting. The density of aluminum 1050 alloy is lighter than steel, helping to reduce product weight and increase energy efficiency. Besides, The high strength and good fatigue resistance help to improve the service life of 1050 aluminum bar. Aluminum 1050 alloy also has excellent electrical and thermal conductivity, giving rise to better heat dissipation and energy transmission of the product. Moreover, 1050 aluminum bars are highly resistant to the corrosion of acid, alkali, salt and other corrosive media.

Product Parameters

Diameter	5-650mm or customized	Length	100-2000mm or customized
Certificate	ISO, SGS, BV
Standard	JIS, AISI, ASTM, GB, DIN, EN, etc.
Brand	1000 Series: 1050, 1060, 1070, 1100, 1200, 1235, etc.3000 Series: 3003, 3004, 3005, 3104, 3105, 3A21, etc.5000 Series: 5005, 5052, 5083, 5086, 5154, 5182, 5251, 5754, 5A05, etc.6000 Series: 6061, 6063, 6082, 6A02, etc.7000 Series: 7050, 7475, 7075, etc.8000 Series: 8A06, 8011, 8090, etc.
Surface	Coating, Embossing, Drawing, Polishing, Anodizing, etc.
OEM Service	Punching, Cutting special size, Making flat surface, Surface treatment, etc.
Delivery Time	Received 30% after deposit 7-15 working days
Application	Construction, Shipbuilding, Decoration, Industry, Manufacturing, Machinery, Hardware and other fields
Sample	Free Offers Sample
Packaging	Strapping, Plastic bag, Film, Wooden pallet Standard seaworthy export packing or according to customer requirement

Chemical Composition

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Others:Each	Others:Total	Al: Min.
1050	0.25	0.40	0.05	0.05	0.05	-	0.05	0.03	0.03	-	99.50
1060	0.25	0.35	0.05	0.03	0.03	-	0.05	0.03	0.03	-	99.60
1070	0.20	0.25	0.04	0.03	0.03	-	0.04	0.03	0.05	-	99.70
1100	0.95 Si Fee		0.05~0.20	0.05	-	-	0.1	-	0.05	0.15	99.0
2014	0.5~1.2	0.7	3.9~5.0	0.4~1.2	0.2~0.8	0.10	0.25	0.15	0.05	0.15	Allowance
2017	0.2~0.8	0.7	3.5~4.5	0.4~1.0	0.4~0.8	0.10	0.25	0.15	0.05	0.15	91.5 - 95.5
2024	0.50	0.50	3.8~4.9	0.3~0.9	1.2~1.8	0.10	0.25	0.15	0.05	0.15	Allowance
3003	0.60	0.70	0.05~0.20	1.0~1.5	-	-	0.10	-	0.05	0.15	Allowance
3A21	0.60	0.70	0.20	1.0-1.6	0.05	-	0.15	0.1-0.2	-	-	Allowance
3004	0.30	0.70	0.25	1.0~1.5	0.8~1.3	-	0.25	-	0.05	0.15	Allowance
3005	0.60	0.70	0.30	1.0~1.5	0.2~0.6	0.10	0.25	0.10	0.05	0.15	Allowance
3105	0.60	0.70	0.30	0.3~0.8	0.2~0.8	0.20	0.40	0.10	0.05	0.15	Allowance
5005	0.30	0.70	0.20	0.20	0.5~1.1	0.1	0.25	-	0.05	0.15	Allowance
5052	0.25	0.40	0.10	0.10	2.2~2.8	0.15~0.35	0.10	-	0.05	0.15	Allowance
5754	0.40	0.40	0.10	0.50	2.6~3.6	0.30	0.20	0.15	0.05	0.15	Allowance
5A05	0.50	0.50	0.10	0.3-0.6	4.8-5.5	-	0.20	-	0.05	0.05	Allowance
5083	0.40	0.40	0.10	0.4~1.0	4.0~4.9	0.05~0.25	0.25	0.15	0.05	0.15	Allowance
6061	0.40~0.8	0.70	0.15~0.4	0.15	0.8~1.2	0.04~0.35	0.25	0.15	0.05	0.15	Allowance
6082	0.70~1.3	0.50	0.10	0.4~1.0	0.6~1.2	0.25	0.20	0.10	0.05	0.15	Allowance
7075	0.40	0.50	1.2~2.0	0.30	2.1~2.9	0.18~0.28	5.1~6.1	0.20	0.05	0.15	Allowance

Mechanical Properties

Tensile Strength (MPa)	Test Stress0.2% (MPa)	HardnessHB	Elongation Rate(%)
105-145	≥85	≥34	≥12

Physical Performance

Density	Melting Point	Modulus of Elasticity	Thermal Conductivity	Thermal Expansion	Resistivity
2.71 Kg/m³	650°C	71 GPa	222 W/m.K	24 × 10-6/K	0.282 × 10-6Ω.m

Annealing State

Brand	Annealing State
1xxx: 1050, 1050A, 1060, 1100	O, H12, H14, H16, H18, H22, H24, H26, H28, H111
3xxx: 3003, 3004, 3005, 3105	O, H12, H14, H16, H18, H22, H24, H26, H28, H111
5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454	O, H22, H24, H26, H28, H32, H34, H36, H38, H111
6xxx: 6061, 6082	T4, T6, T451, T651
2xxx: 2024	T3, T351, T4
7xxx: 7075	T6, T651

Scope of Application

Aluminum Uses And Application Area
Food Packaging	Beverage can ends, cans, bottle caps, etc.
Building	Curtain walls, cladding, suspended ceilings, thermal insulation, venetian blinds, etc.
Transportation	Auto parts, passenger car bodies, aviation ships and air cargo containers.
Electronic Equipment	Electrical appliances, communication equipment,PCPlate drilling guide, lighting and heat dissipation materials, etc.
Consumer Goods	Umbrellas, cooking utensils, sports equipment, etc
Other	Military, color coated aluminum plate

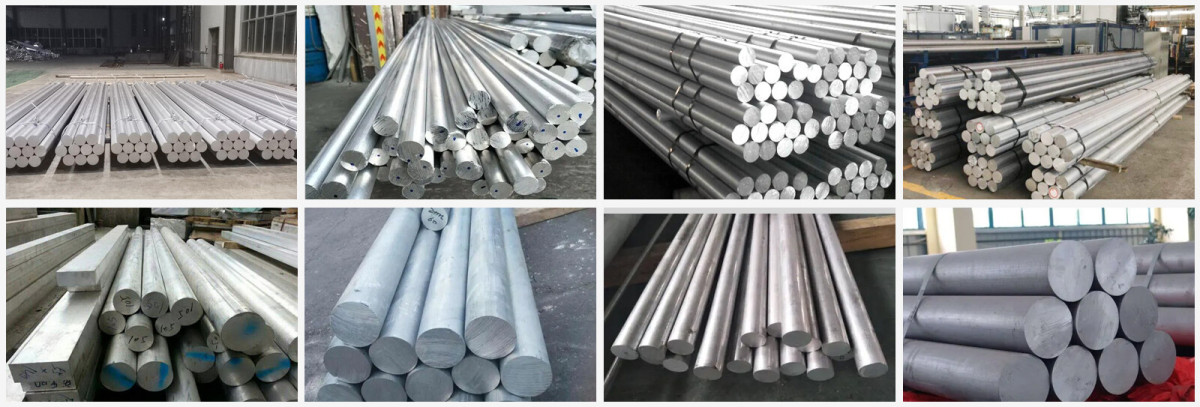

◉ Product Show

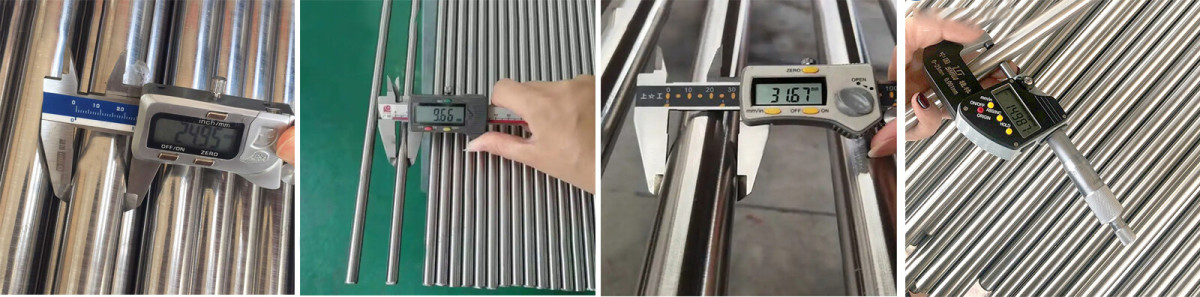

Product Measurement

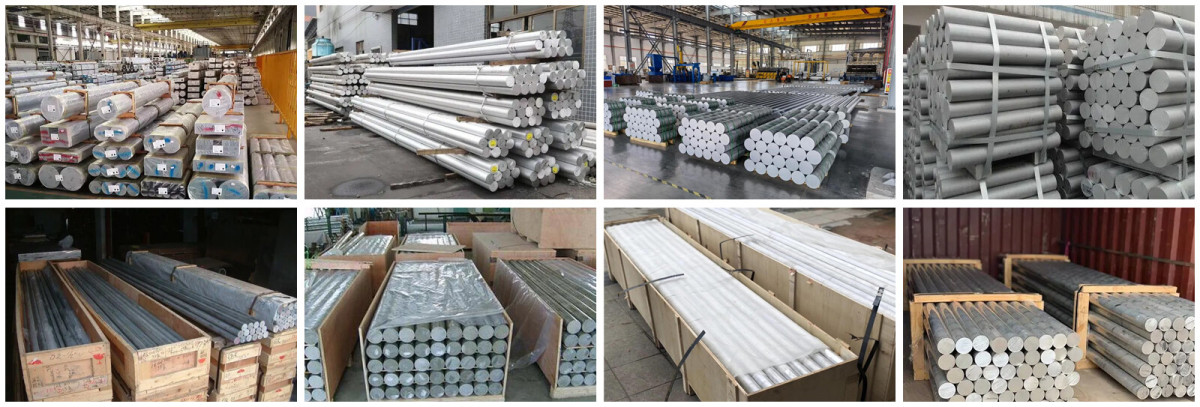

Product packaging & shipping

◉ Company Profile

Best Steel Co., Ltd. is a large-scale comprehensive enterprise integrating steel smelting, processing and sales. The company has been established for decades and has multiple production bases and processing centers covering all parts of the country.

The company has a professional technical team and management team, advanced production equipment and technology, and uses high-quality raw materials to produce high-quality steel products. The company focuses on product quality and brand building, and has passed ISO9001 quality management system certification and multiple national and industry standard certifications.

◉ Certificate Display

We produce our own brand of steel products and can also supply steel products of other well-known brands. Our products have passed the "ISO9001 quality system certification, and have CE certificates and SGS test reports. In 2015, we opened foreign markets. Our company integrates processing and trade and has high supply capabilities.

◉ FAQ

Q: What product information do I need to provide?
A: You need to provide grade, width, thickness and the ton you need to buy.
O: How I believe you?
A: We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to checkour credit.
Q: Can you give warranty ofyour products?
A: Yes, we extend a 100% satisfaction auarantee on al items, Please feel free to feedback immediately if you are not pleased with
our quality or service.
Q: What kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please cont
Q: How to pack the product?
A: The inner layer has a waterproof paper outer layer, iron packaging, and is fixed with a fumigated wooden pallet. It caneffectively protect products from corrosion during ocean transportation.
